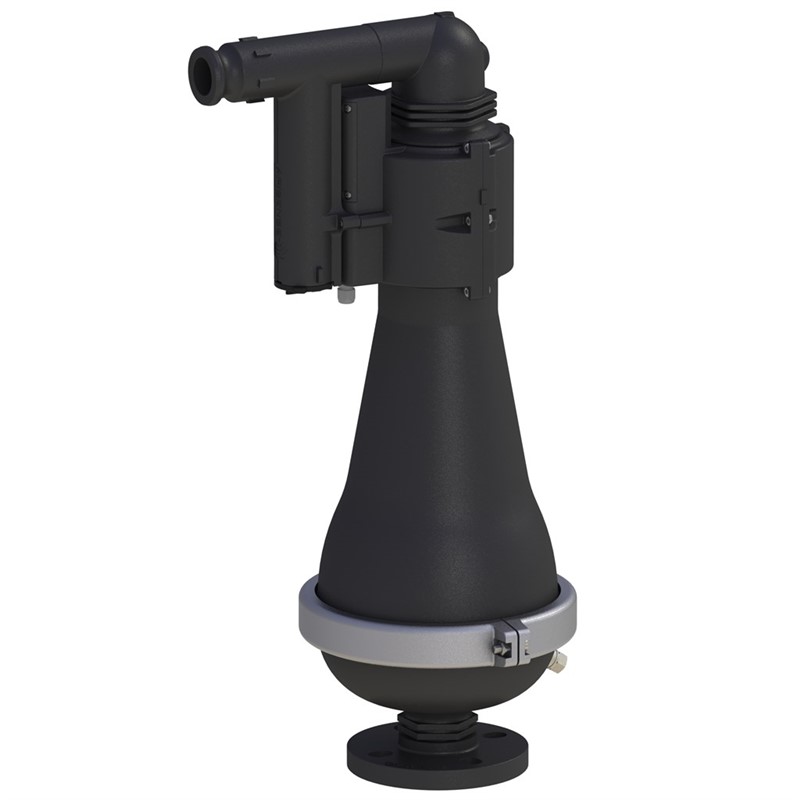

AVK SMART COMBINATION AIR VALVE, PN16

Features

• Orifice sizes: Automatic 12 mm², kinetic 804 mm²
• The large air gap between liquid and sealing system ensures a reliable function even when used with aggressive liquids and liquids carrying solid particles
• The large orifice in the automatic valve releases large volumes of air when the line is under pressure
• The spring between the stem and upper float compensates for slight pressure changes

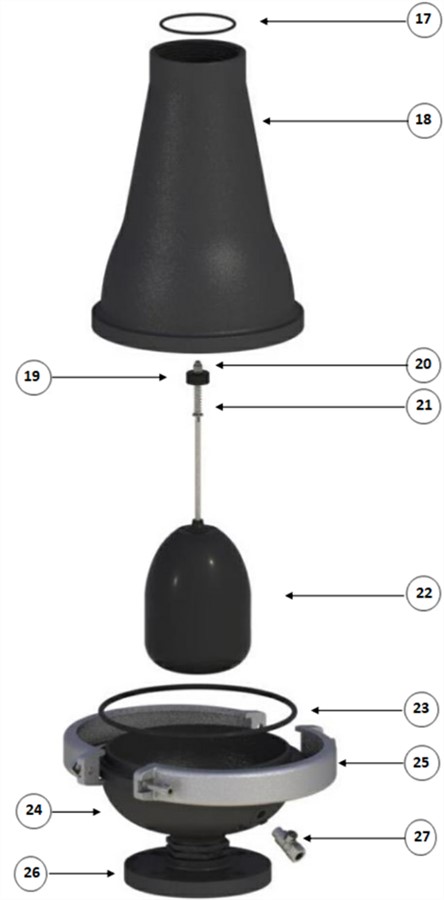

• The lower float system with float of polypropylene and stem and spring of acid-resistant stainless steel ensures high corrosion resistance
• The conical body with funnel-shaped lower body allows maximum air volume within minimum valve length and prevents accumulation of deposits at the bottom
• The body of reinforced polyamide features low weight
• Drainage and flushing from external clean water source is possible through the drain in the valve’s side
• An exhaust tube can be mounted to the quick connector at the valve
• Working pressure range: 0.05 – 16 bar

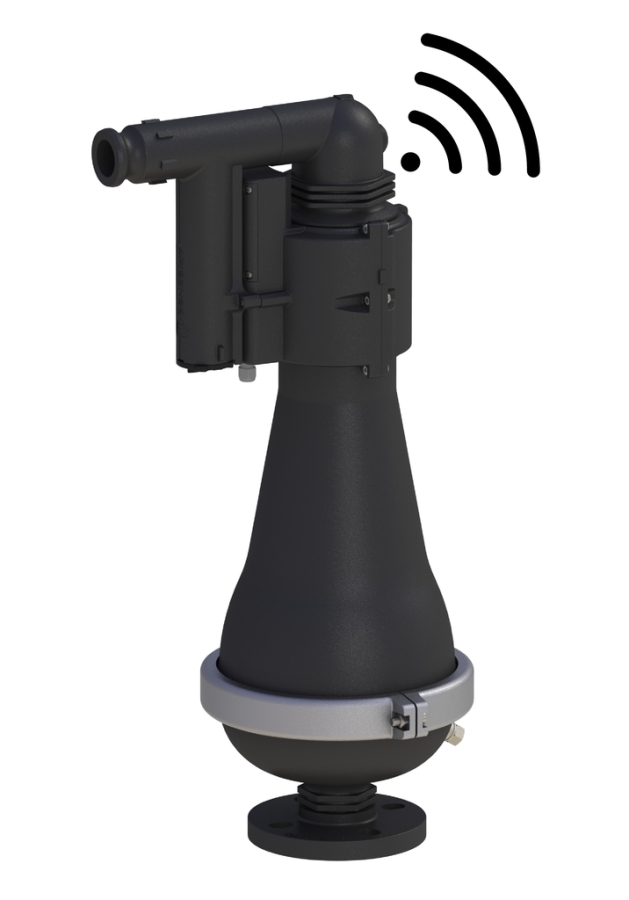

• Fast and Stable IoT connectivity
• Early detection and Instant alerts in case of leaks or blockages. Can be sent to your Smartphone
• 24/7 monitoring of pressure flow within pipelines
• SCADA SYSEM connection compatibility
