AVK security device for underground fire hydrants
To suit Type 2 and Clearway Hydrants
Mamoun Humayra
Water Product Manager
Hydrant Security Device: A three part locking device for hydrant outlet and operating spindles to provide security from vandalism.
A three part locking device for hydrant outlet and operating spindles to provide security from vandalism, water theft and the potential introduction of hazardous materials to maintain the critical function of the hydrant required by the Fire and Rescue Service and Water Utilities. A simple release mechanism ensures quick and easy access. Requires no specialist tooling and can be retro fitted to a number of UK style hydrants.
| Variant 29/10-001 | |
|---|---|
| Connection: | No connection type specified |
| Material: | Ductile Iron |
| DN: | DN80 - DN80 |
Features
- Unique design of locking cap
- Tamper proof
- Offers protection to hydrant outlet and operating spindle
- No special tooling for installation
- Low cost
- Prevents unauthorised use of hydrant
- Ease of fitting and removal
- Maintenance free
- Fully epoxy coated for corrosion resistance
- Embodied carbon data available upon request.
- Universal fitting
Downloads
Reference nos. and dimensions:
| Ref. no. | DN mm |
Theoretical weight / kg |
Notes |
|---|---|---|---|
| 29-009-00-50 | 80 | 3 | Hydrant Security Device Key |

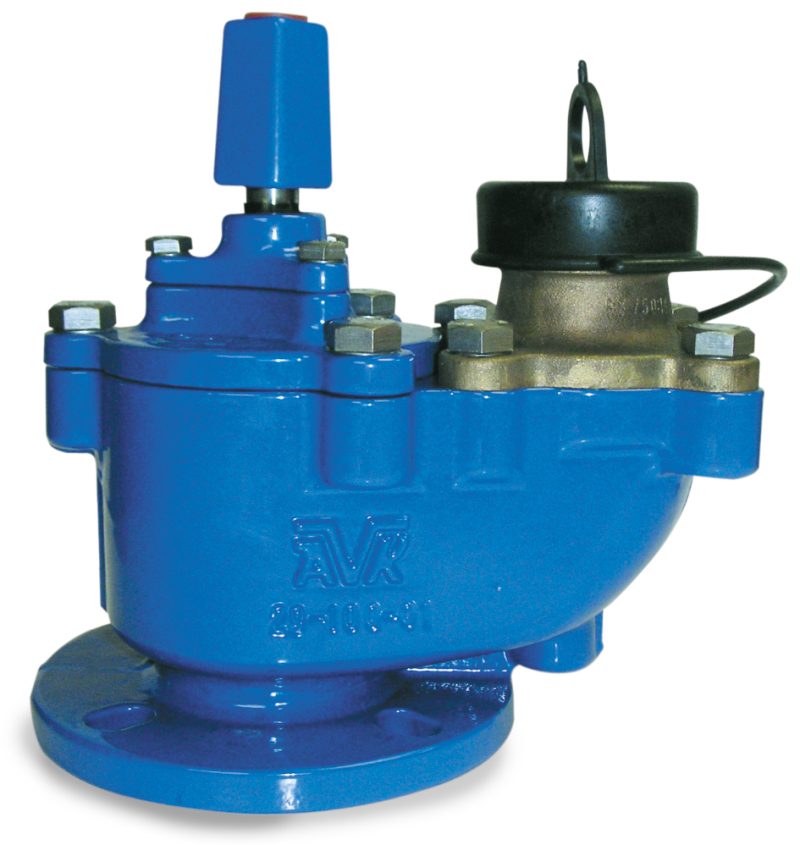

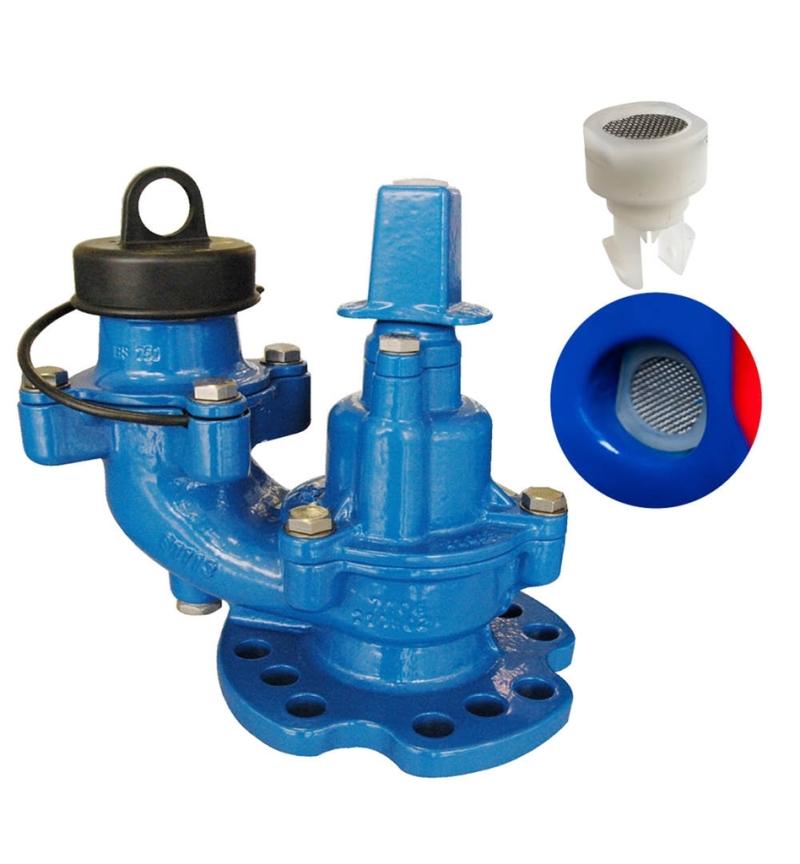

| 29-009-10-00 | 80 | 3.722 | Hydrant Model BS750 Type -2, 29/388 & 29/288 |
| 29-009-20-00 | 80 | 2.828 | Hydrant Model Through Bore 29/90 |
| 29-009-30-00 | 80 | 3.722 | Hydrant Model Through Bore 29/91 & Universal (compatible with other manufacturers products) |
Components
| 1. | Ductile iron | |
| 2. | Bracket | Ductile iron |
| 3. | Adaptor Key | Zinc plated ductile iron |
| 4. | Coating | Epoxy |
Test/Approvals
- Drinking Water Inspectorate Regulation 31 compliant
- Made in Great Britain
